KLIPPEL耐久性测试硬件设置
KET硬件设置的测量设备是Powersoft Mezzo或Unica系列的音频放大器，包括电压和电流传感以及Dante™网络信号流。相应的技术说明TN16列出了所有强制性或可选的硬件组件，并描述了如何将它们组合到Klippel耐久性测试（KET）系统中。它也将在订购过程中用作硬件选择指南。
KET控制装置 KET控制装置可以是满足Klippel PC要求的任何PC。这台电脑的硬件接口要求只是局域网连接。Dante™虚拟声卡许可证使LAN连接成为音频流网络。建议使用专门用于Dante流的单独LAN连接，以提高操作安全性，尽管这不是必需的。
支持的测量设备/放大器 Mezzo系列
建议使用以下列出的4通道放大器（MEZZO 604 AD和MEZZO 324 AD），因为它们具有灵活性和成本效益，2通道放大器（MEZZO 602 AD和MEZZO 322 AD）可用于小型设置。
KET控制装置 KET控制装置可以是满足Klippel PC要求的任何PC。这台电脑的硬件接口要求只是局域网连接。Dante™虚拟声卡许可证使LAN连接成为音频流网络。建议使用专门用于Dante流的单独LAN连接，以提高操作安全性，尽管这不是必需的。
支持的测量设备/放大器 Mezzo系列
建议使用以下列出的4通道放大器（MEZZO 604 AD和MEZZO 324 AD），因为它们具有灵活性和成本效益，2通道放大器（MEZZO 602 AD和MEZZO 322 AD）可用于小型设置。
-

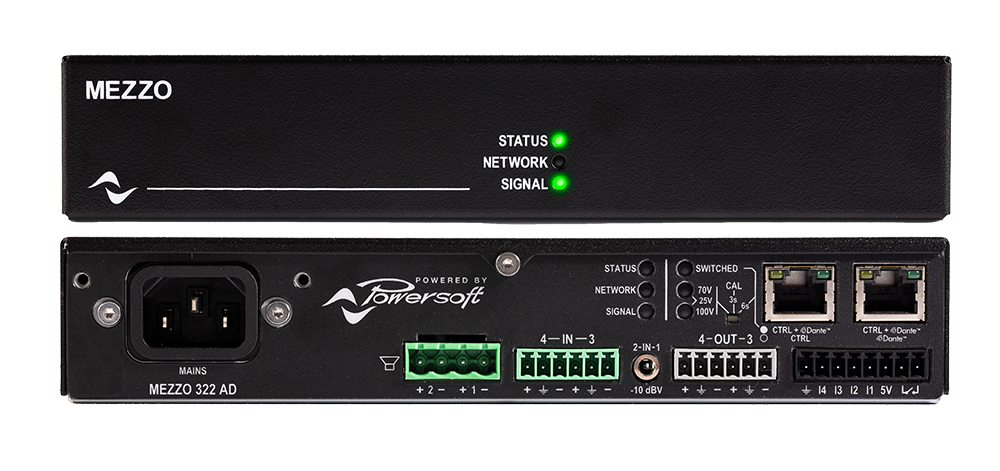

MEZZO 322 AD
The 80W/2-channel Compact Amplifier with DSP and Dante™ is an alternative KET amplifier for 2 channels.
-
MEZZO 324 AD
The 80W/4-channel compact amplifier with DSP and Dante™ is recommended for mini speakers and headphones.
-

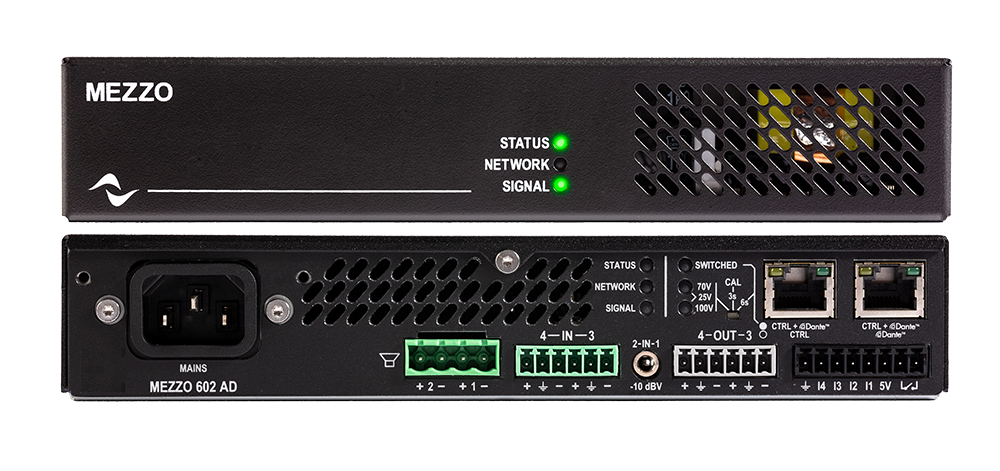

MEZZO 602 AD
The 150W/2-channel compact amplifier with DSP and Dante™ is an alternative KET amplifier for 2 channels.
-
MEZZO 604 AD
The 150W/4-channel compact amplifier with DSP and Dante™ is recommended for smaller speakers.
UNICA系列
-

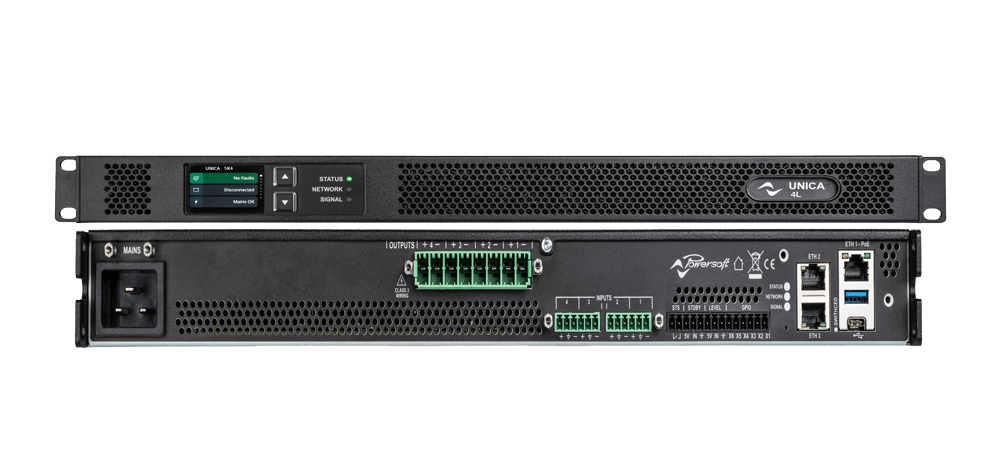

UNICA 4L Series
The 4-channel amplifier with DSP and Dante™ in various models is recommended for higher power requirements.
-

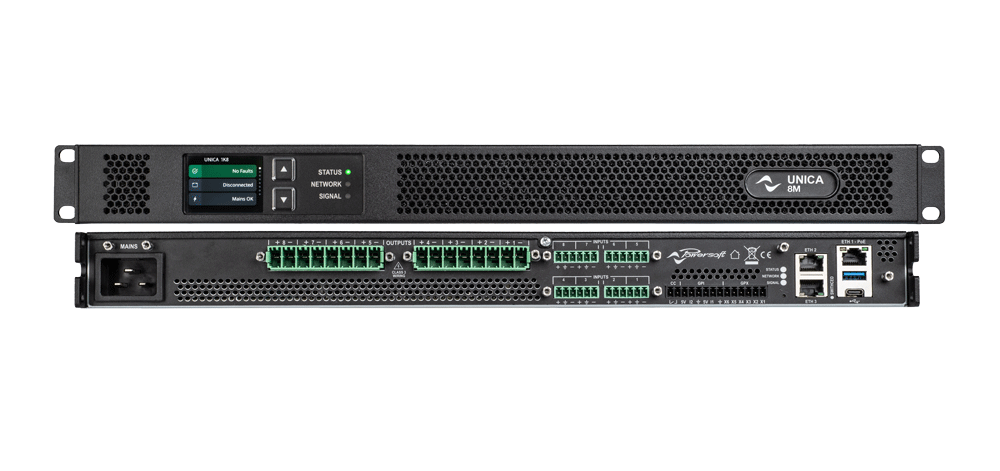

UNICA 8M Series
The 8-channel Amplifier with DSP and Dante™ in various models is recommended for medium power requirements.

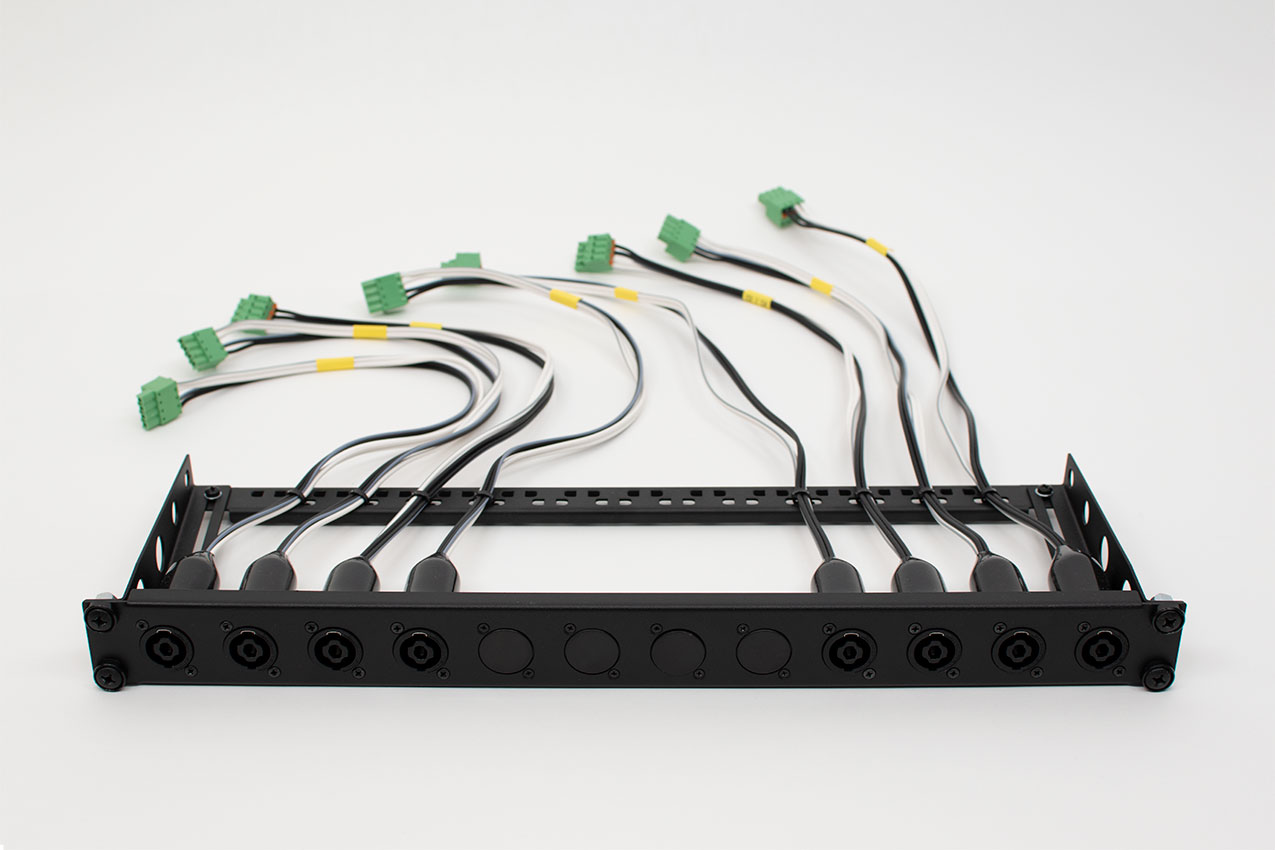

Connection Panel: KET Patch Bay
For complete out-of-the-box packages, the following optional accessories could be chosen:
• Exchanging the DUTs quickly at the front side of the rack
• Using cables with standardized speakON-connectors
• Klippel Speaker Cables could be used, and alligator clips could be used
• SpeakON-extension cables could be used
• For cost-effective and environmentally friendly setups one speakON-connector at the Patch Bay feeds two DUT channels. The Patch-Bay with its 8 speakON-connectors feeds 16 DUTs.
• Klippel Speaker Cables allow connecting two DUTs which could be separated up to 1 m.
• The KET Patch-Bay is equipped with COMBICON connectors for easy mounting into a rack and for plug-play connecting of the smart power amplifiers and DUTs
• Exchanging the DUTs quickly at the front side of the rack
• Using cables with standardized speakON-connectors
• Klippel Speaker Cables could be used, and alligator clips could be used
• SpeakON-extension cables could be used
• For cost-effective and environmentally friendly setups one speakON-connector at the Patch Bay feeds two DUT channels. The Patch-Bay with its 8 speakON-connectors feeds 16 DUTs.
• Klippel Speaker Cables allow connecting two DUTs which could be separated up to 1 m.
• The KET Patch-Bay is equipped with COMBICON connectors for easy mounting into a rack and for plug-play connecting of the smart power amplifiers and DUTs
